PPLN Device

Liniobate produces periodically poled lithium niobate (PPLN) waveguide modules for visible, near-IR, and mid-IR light generation. The module consists of a PPLN waveguide, a thermoelectric cooler, and a thermistor. A custom design of the poling period is available. Please specify your pump and SHG/SFG/DFG wavelenghts down to 2 decimal places when ordering modules.

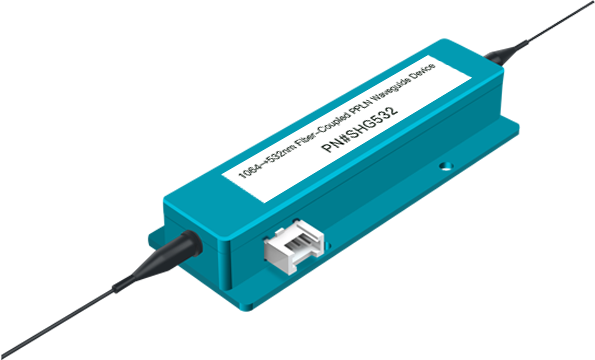

1064→532nm Fiber-Coupled PPLN Waveguide Device

  • FC/APC Connector (Both ends), Input Fiber :PM980 fibers with Slow axis alignment,Output Fiber:PM460 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:2W,Output Power:＞400mW.

    • View Now

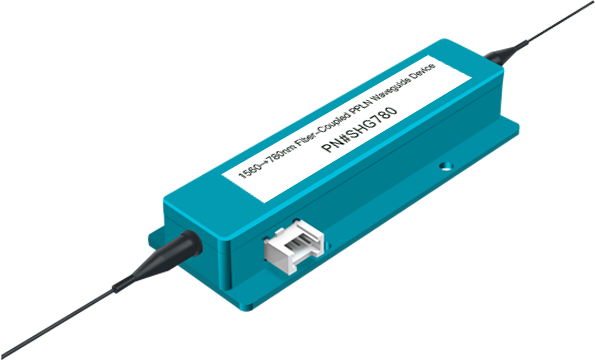

    1560→780nm Fiber-Coupled PPLN Waveguide Device

  • FC/APC Connector (Both ends), Input Fiber :PM 1550 fibers with Slow axis alignment,Output Fiber:PM780 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:5W,Output Power:＞1000mW.

    • View Now
