1064→532nm Fiber-Coupled PPLN Waveguide Device

1064→532nm Fiber-Coupled PPLN Waveguide Device

FC/APC Connector (Both ends), Input Fiber :PM980 fibers with Slow axis alignment,Output Fiber:PM460 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:2W,Output Power:＞400mW.

Recommended

Overview
Parameters
PDF
RFQ

Overview

Linibate produce periodically-poled lithium niobate (PPLN) in two forms: as a bulk crystal with a thickness of up to 1 mm, and as a waveguide device. PPLN devices are tailored for the production of tunable midwave-infrared (MWIR) radiation through pumping by commonly-available lasers with wavelengths near 1 micron.

Product features：FC/APC Connector (Both ends), Input Fiber :PM980 fibers with Slow axis alignment,Output Fiber:PM460 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:2W,Output Power:＞400mW.

Part Number：SHG532

Application area：Optical frequency conversion、 Sum-frequency generation、 Difference-frequency generation、

Parameters

Features

Bulk PPLN devices can produce several Watts of average power between wavelengths of 2 and 4 microns. Waveguide frequency converters are fabricated using a process called Reverse Proton Exchange (RPE). The increased optical mode confinement in the resulting waveguide enables higher conversion efficiency devices that can be pumped with 100 mW class semiconductor lasers used for fiber-optic and free-space telecommunications.

Working Theory

Standard Specifications

Item	SHG488	SHG532	SHG592	SHG775	SHG780
Input IR Wavelength	977nm	1064nm	1184nm	1550nm	1560nm
Input Maximum IR Power	< 2W		< 2W	< 5W	< 5W
Input Fiber Type /Operational Polarization Axis	PM980 / Slow			PM1550/ Slow
SHG Wavelength	488.5nm	532nm	592nm	775nm	780nm
Back Reflection	> 35dB
Polarization Extinction Ratio	> 20dB(PM Fiber output)
Beam Waist Diameter（1/e2）	1mm
M2	< 1.1
Beam Divergence Nominal	< 0.9mrad		< 1.15mrad
Beam Waist Location From The Front Plate	0 to 1000mm
Beam Ellipticity	< 10%
Static Beam Position	< ±0.5mm
Static Beam Angle	< ±5mrad
Beam Pointing Stability（Stable Temperature）	< 10mrad
Beam Pointing Stability（Temperature Changing）	< 10urad/degC
Output Power Stability	< 1％ over 8 hours
Operational Ambient Temperature Range	10 to 40 degC
Storage Temperature	－40 to 60 degC

As for SHG532, Liniobate can supply you with not only PPLN－UNIT but also PPSLT－UNIT. For this case, you can input IR power up to 10W and you will get over 2W of SHG output power.

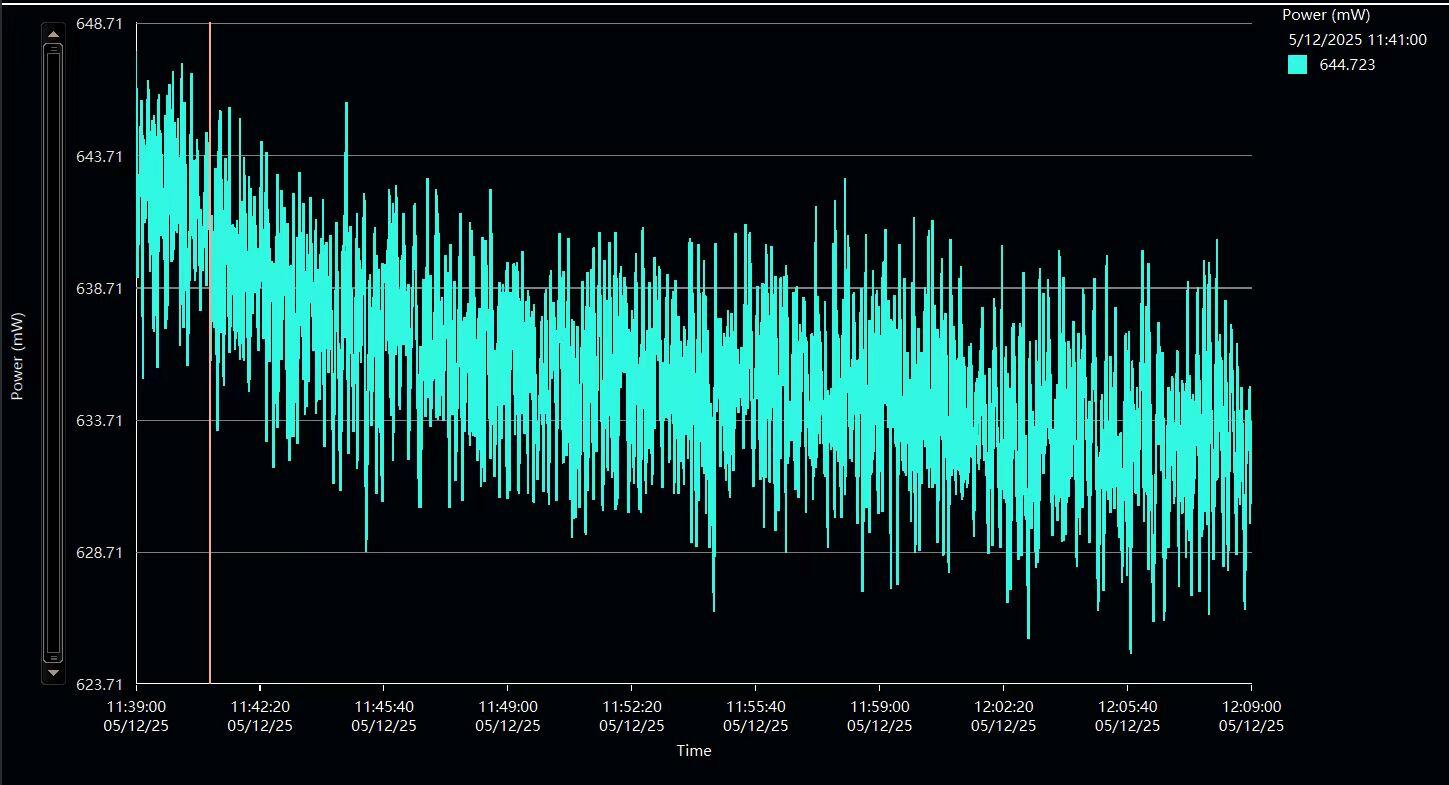

SHG532 Power Stability

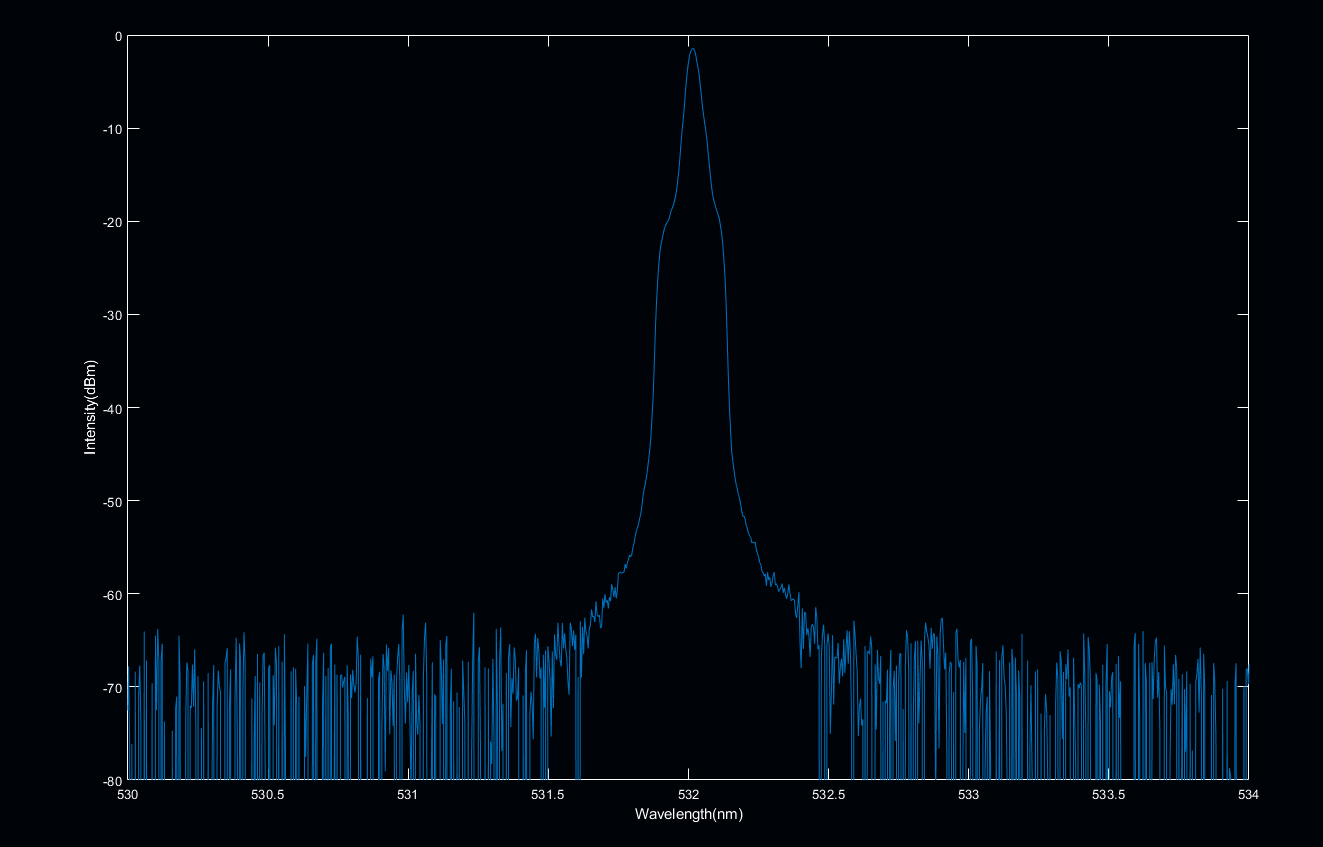

Spectrum and Tuning Range

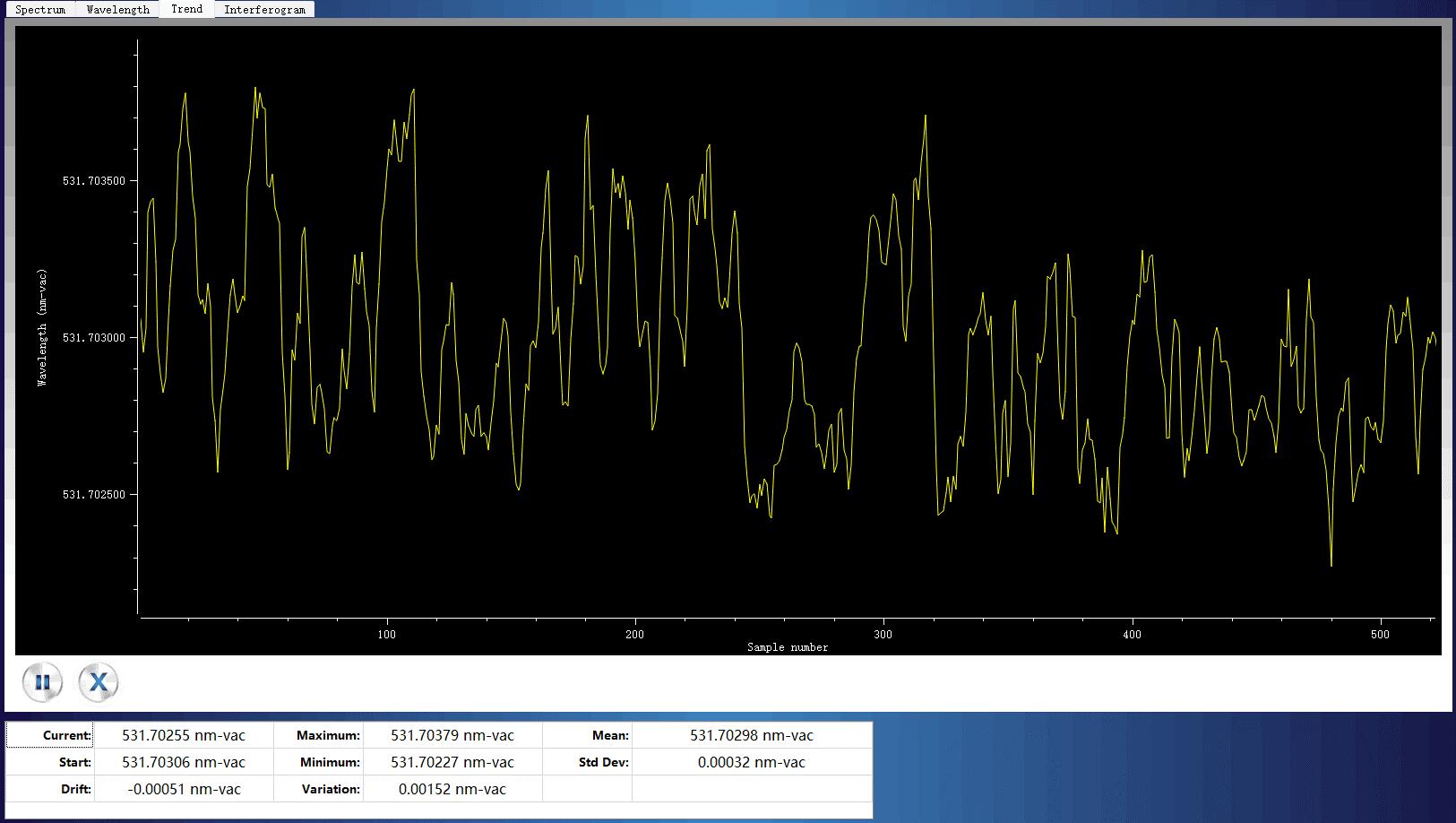

Frequency Stability

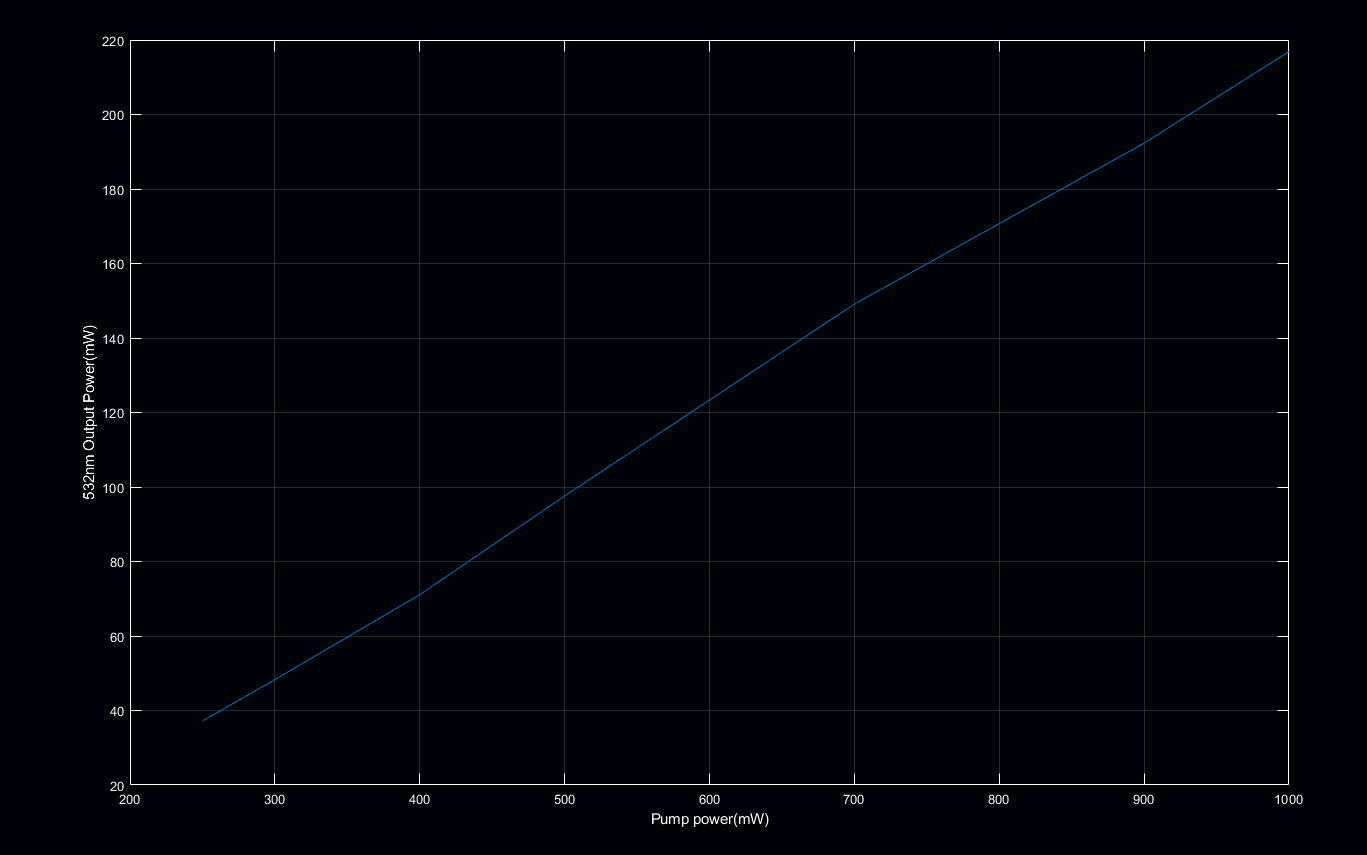

PPLN Pump and Signal Power Conversion curve

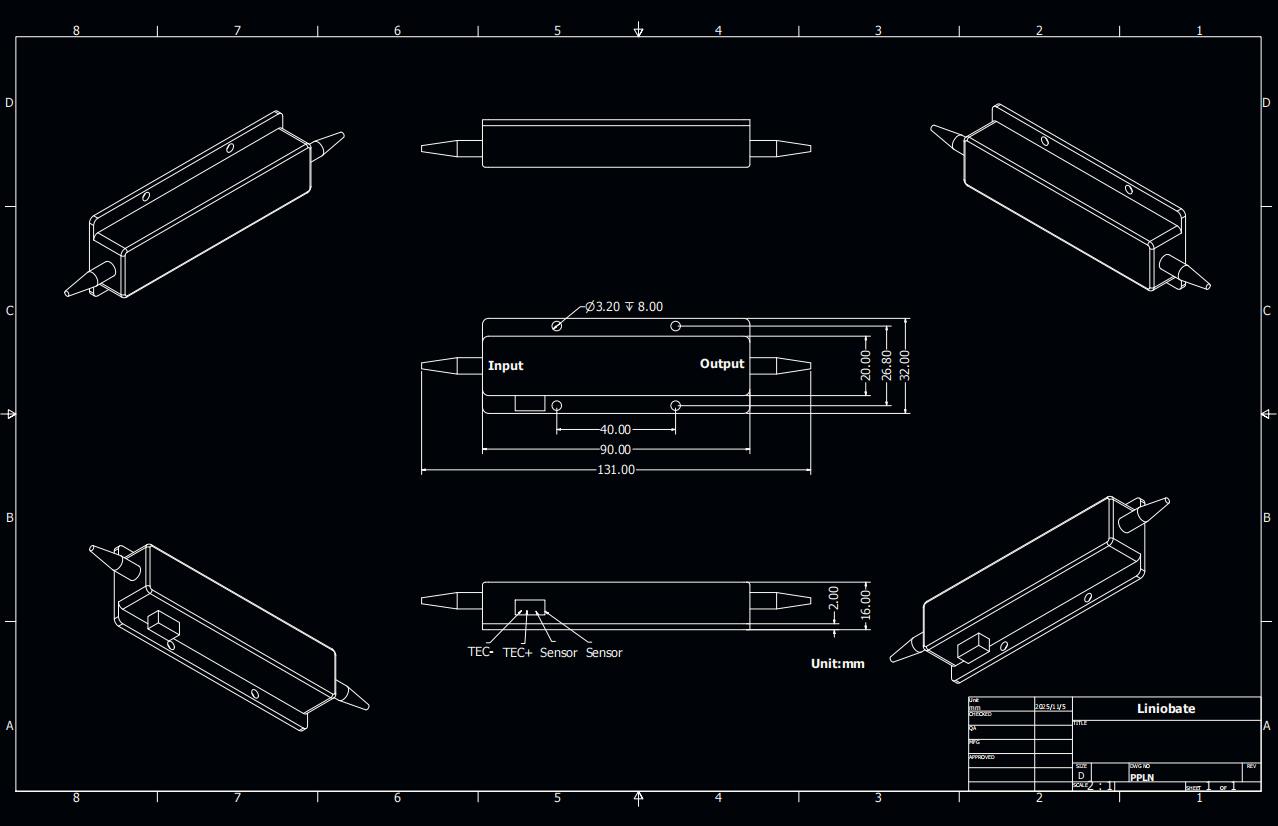

Dimensions and Pin definitions（Unit in mm)

Ordering info

PN#SHG532 1064→532nm Fiber-Coupled PPLN Waveguide Device

FC/APC Connector (Both ends), Input Fiber :PM980 fibers with Slow axis alignment,Output Fiber:PM460 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:2W,Output Power:＞400mW.

Download

1064→532nm Fiber-Coupled PPLN Waveguide Device.pdf
