RF Module

Liniobate offers DFB lasers with a 3dB frequency response bandwidth above 30 GHz for applications that rely on high-speed direct modulation.

These lasers are offered in standard 7-pin butterfly package with RF (K) connector, internal thermoelectric cooler, isolator(Optional）, and polarization maintaining (PM) fiber pigtail with FC/APC connectors.

1310 nm High-Speed 18GHz+ directly-modulated lasers (No Isolator)

  • FC/APC Connector, Output Fiber:PM1310 fibers with Slow axis alignment, PER＞18dB,Modulation Bandwidth:＞20Ghz,Output Power:＞8dBm, RF input connector:2.92 mm (K) Female, No Isolator

    • View Now

    1310 nm High-Speed 18GHz+ directly-modulated lasers

  • FC/APC Connector, Output Fiber:PM1310 fibers with Slow axis alignment, PER＞18dB, Modulation Bandwidth:＞20Ghz, Output Power:＞8dBm, RF input connector:2.92 mm (K) Female, With Isolator

    • View Now

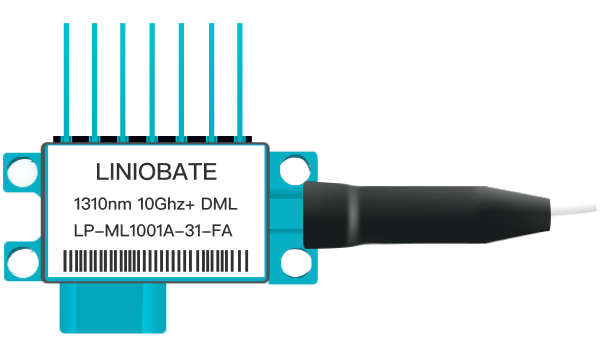

    1310 nm High-Speed 10 GHz+ directly-modulated lasers

  • FC/APC Connector,Output Fiber:PM1310 fibers with Slow axis alignment，PER＞18dB,Modulation Bandwidth:＞10Ghz,Output Power:＞8dBm,RF input connector:2.92 mm (K) Female,With Isolato

    • View Now

    1310 nm High-Speed 10 GHz+ directly-modulated lasers (No Isolator)

  • FC/APC Connector,Output Fiber:PM1310 fibers with Slow axis alignment，PER＞18dB,Modulation Bandwidth:＞10Ghz,Output Power:＞8dBm,RF input connector:2.92 mm (K) Female,Without Isolator

    • View Now

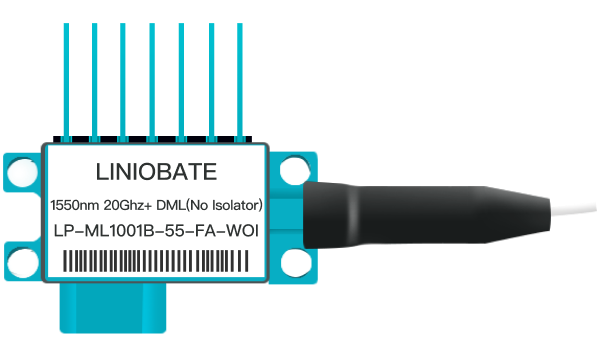

    1550 nm High-Speed 20 GHz+ directly-modulated lasers (No Isolator)

  • FC/APC Connector,Output Fiber:PM1550 fibers with Slow axis alignment，PER＞18dB,Modulation Bandwidth:＞20Ghz,Output Power:＞8dBm,RF input connector:2.92 mm (K) Female,Without Isolator

    • View Now

    1550 nm High-Speed 10 GHz+ directly-modulated lasers (No Isolator)

  • FC/APC Connector,Output Fiber:PM1550fibers with Slow axis alignment，PER＞18dB,Modulation Bandwidth:＞10Ghz,Output Power:＞8dBm,RF input connector:2.92 mm (K) Female,Without Isolator

    • View Now

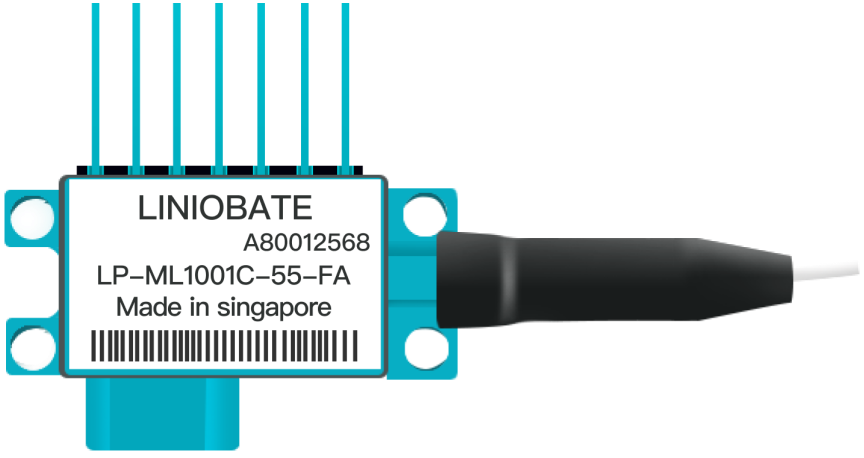

    1550 nm High-Speed 20 GHz+ directly-modulated lasers

  • FC/APC Connector,Output Fiber:PM1550 fibers with Slow axis alignment，PER＞18dB,Modulation Bandwidth:＞20Ghz,Output Power:＞8dBm,RF input connector:2.92 mm (K) Female,With Isolator

    • View Now

    1550 nm High-Speed 10 GHz+ directly-modulated lasers

  • FC/APC Connector,Output Fiber: PM1550fibers with Slow axis alignment，PER＞18dB,Modulation Bandwidth:＞10Ghz,Output Power:＞8dBm,RF input connector:2.92 mm (K) Female,With Isolator

    • View Now
