1560→780nm Fiber-Coupled PPLN Waveguide Device

  • FC/APC Connector (Both ends), Input Fiber :PM 1550 fibers with Slow axis alignment,Output Fiber:PM780 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:5W,Output Power:＞1000mW.

    • Recommended

    Overview

    Linibate produce periodically-poled lithium niobate (PPLN) in two forms: as a bulk crystal with a thickness of up to 1 mm, and as a waveguide device. PPLN devices are tailored for the production of tunable midwave-infrared (MWIR) radiation through pumping by commonly-available lasers with wavelengths near 1 micron.
  • Product features：FC/APC Connector (Both ends), Input Fiber :PM 1550 fibers with Slow axis alignment,Output Fiber:PM780 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:5W,Output Power:＞1000mW.
  • Part Number：SHG780
  • Application area：Optical frequency conversion、 Sum-frequency generation、 Difference-frequency generation

    • Parameters

    Features

    Bulk PPLN devices can produce several Watts of average power between wavelengths of 2 and 4 microns. Waveguide frequency converters are fabricated using a process called Reverse Proton Exchange (RPE). The increased optical mode confinement in the resulting waveguide enables higher conversion efficiency devices that can be pumped with 100 mW class semiconductor lasers used for fiber-optic and free-space telecommunications.

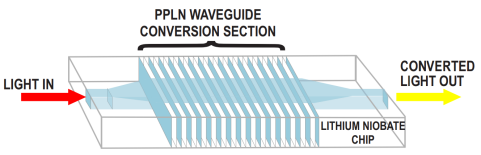

    Working Theory


    Standard Specifications

     Item

    SHG488

    SHG532

    SHG592

    SHG775

    SHG780

    Input Maximum IR Power

    < 2W

    < 2W

    < 5W

    < 5W

    Input Fiber Type /Operational Polarization Axis

    PM980 / Slow

    PM1550/ Slow

    SHG Wavelength

    488.5nm

    532nm

    592nm

    775nm

    780nm

    Back Reflection

    > 35dB

    Polarization Extinction Ratio

    > 20dB(PM Fiber output)

    Beam Waist Diameter（1/e2）

    1mm

    M2

    < 1.1

    Beam Divergence Nominal

    < 0.9mrad

    < 1.15mrad

    Beam Waist Location From The Front Plate

    0 to 1000mm

    Beam Ellipticity

    < 10%

    Static Beam Position

    < ±0.5mm

    Static Beam Angle

    < ±5mrad

    Beam Pointing Stability（Stable Temperature）

    < 10mrad

    Beam Pointing Stability（Temperature Changing）

    < 10urad/degC

    Output Power Stability

    < 1％ over 8 hours

    Operational Ambient Temperature Range

    10 to 40 degC

    Storage Temperature

    －40 to 60 degC

    As for SHG532, Liniobate can supply you with not only PPLN－UNIT but also PPSLT－UNIT. For this case, you can input IR power up to 10W and you will get over 2W of SHG output power.

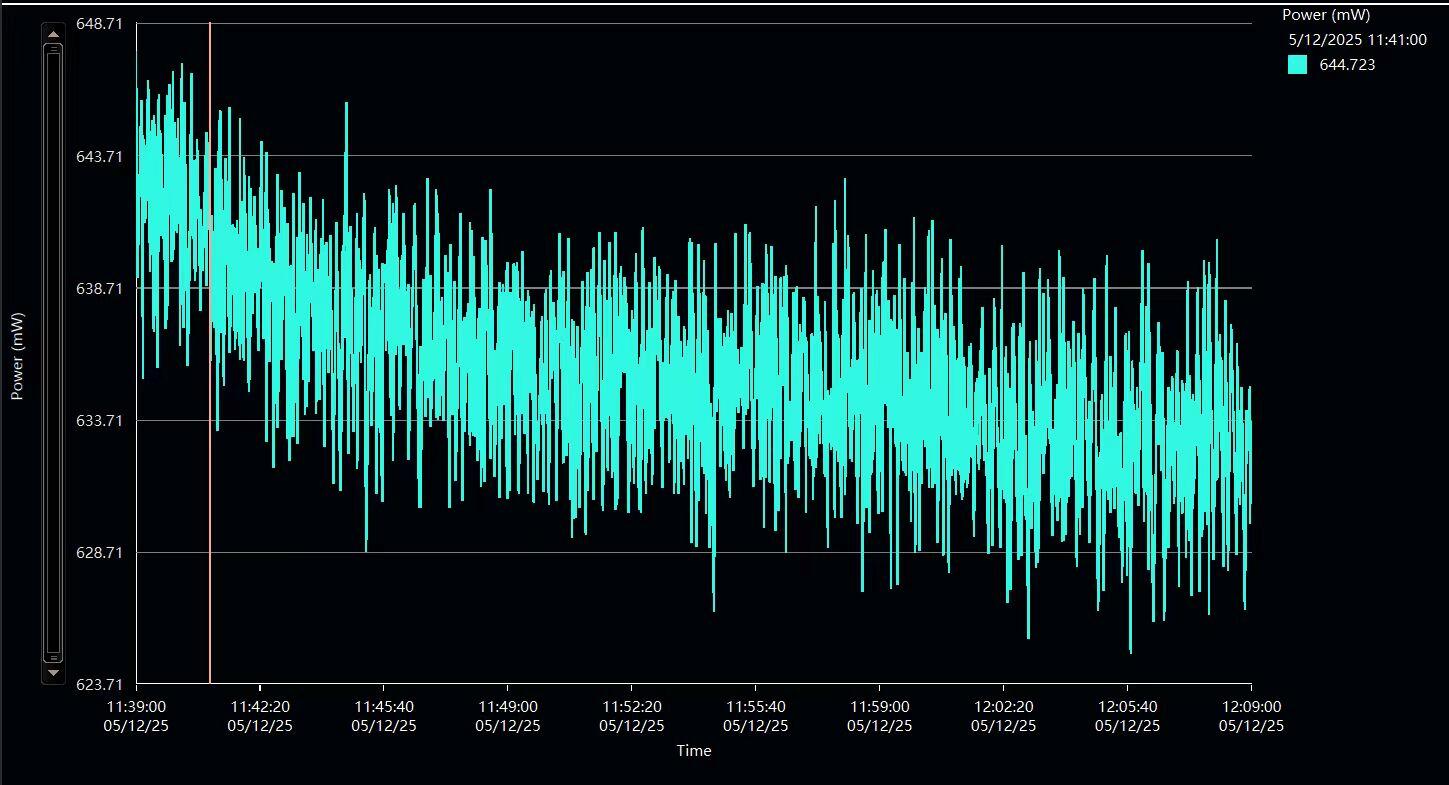

    SHG780 Power Stability

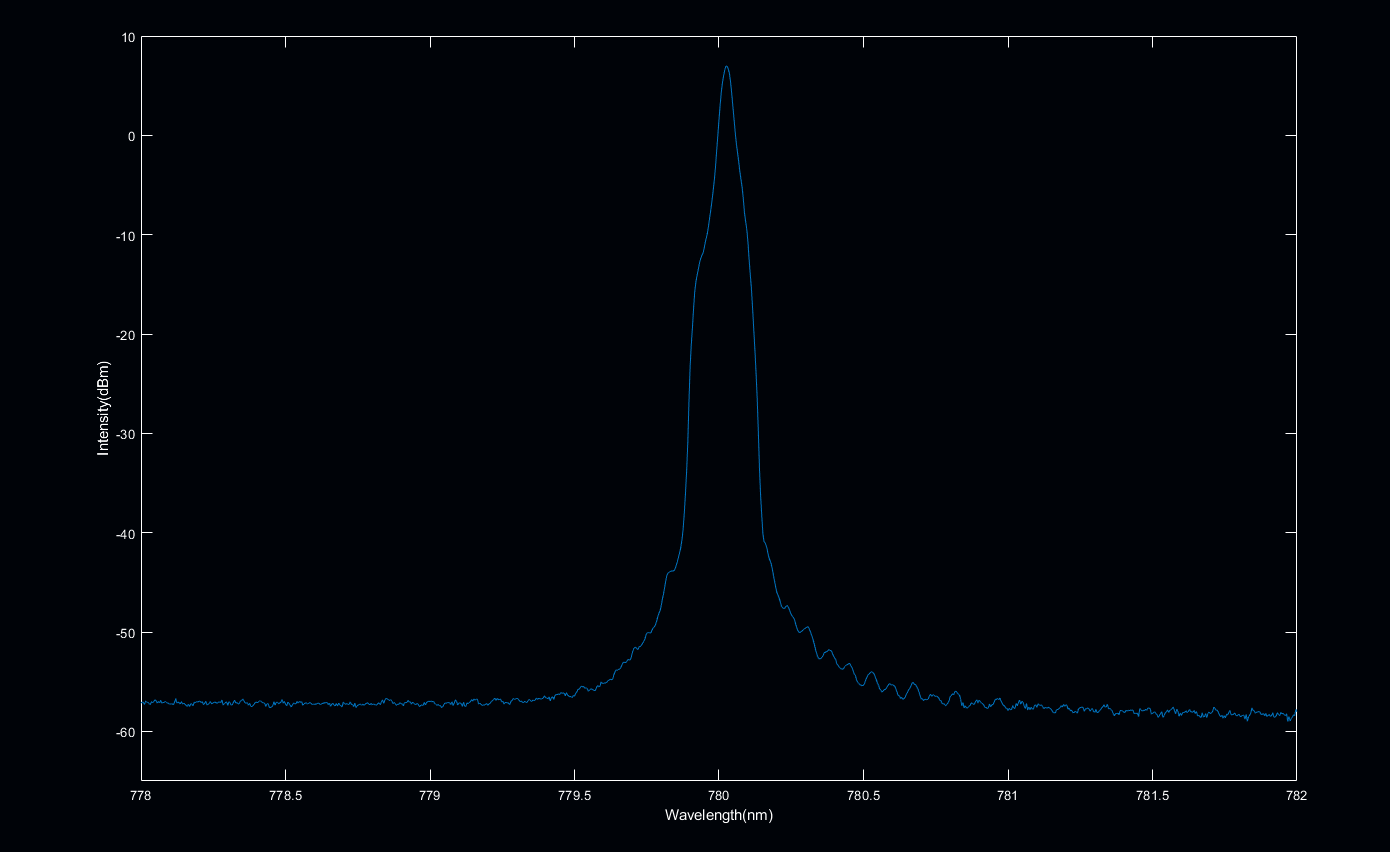

    Spectrum and Tuning Range

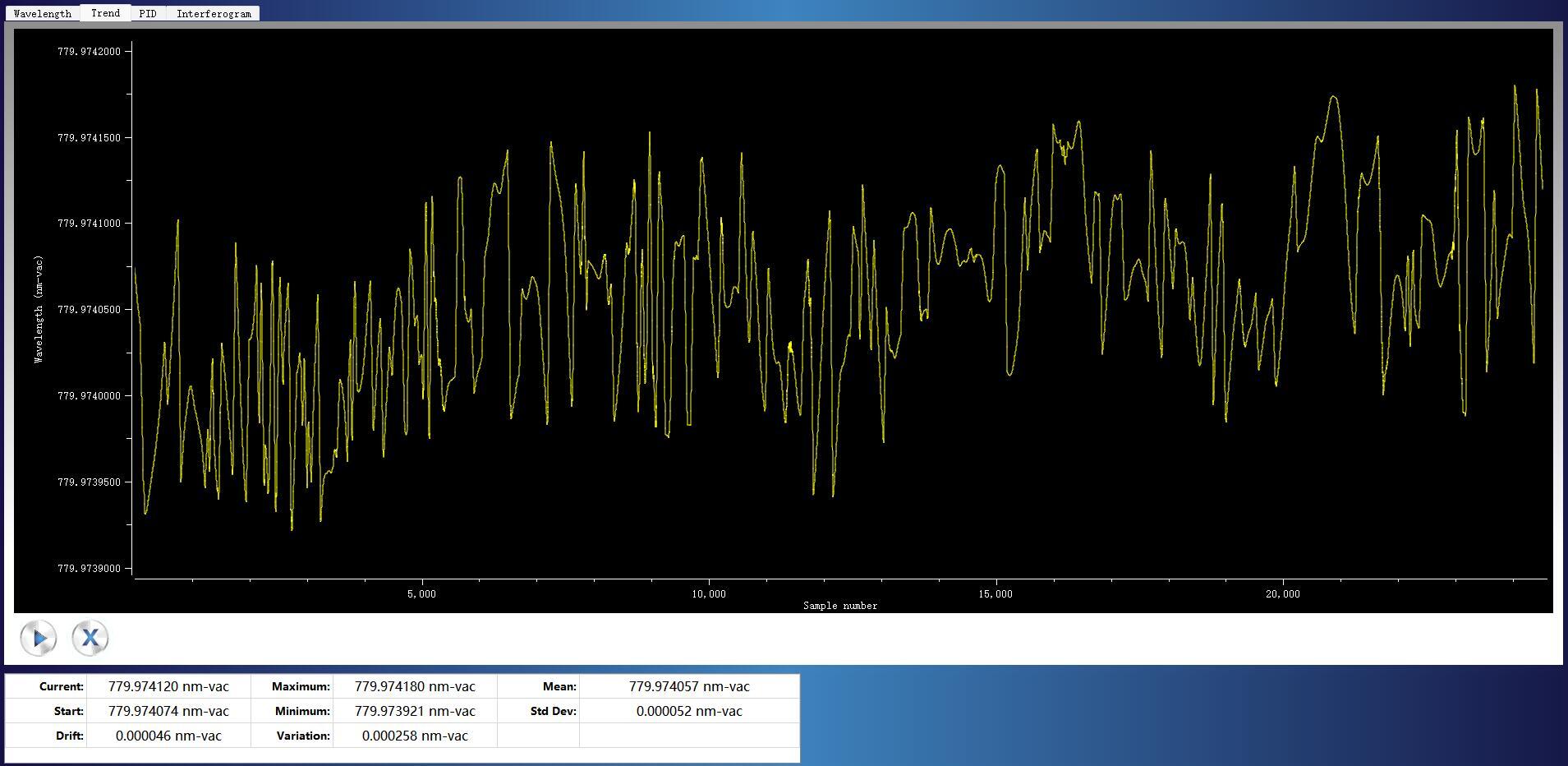

    Frequency Stability

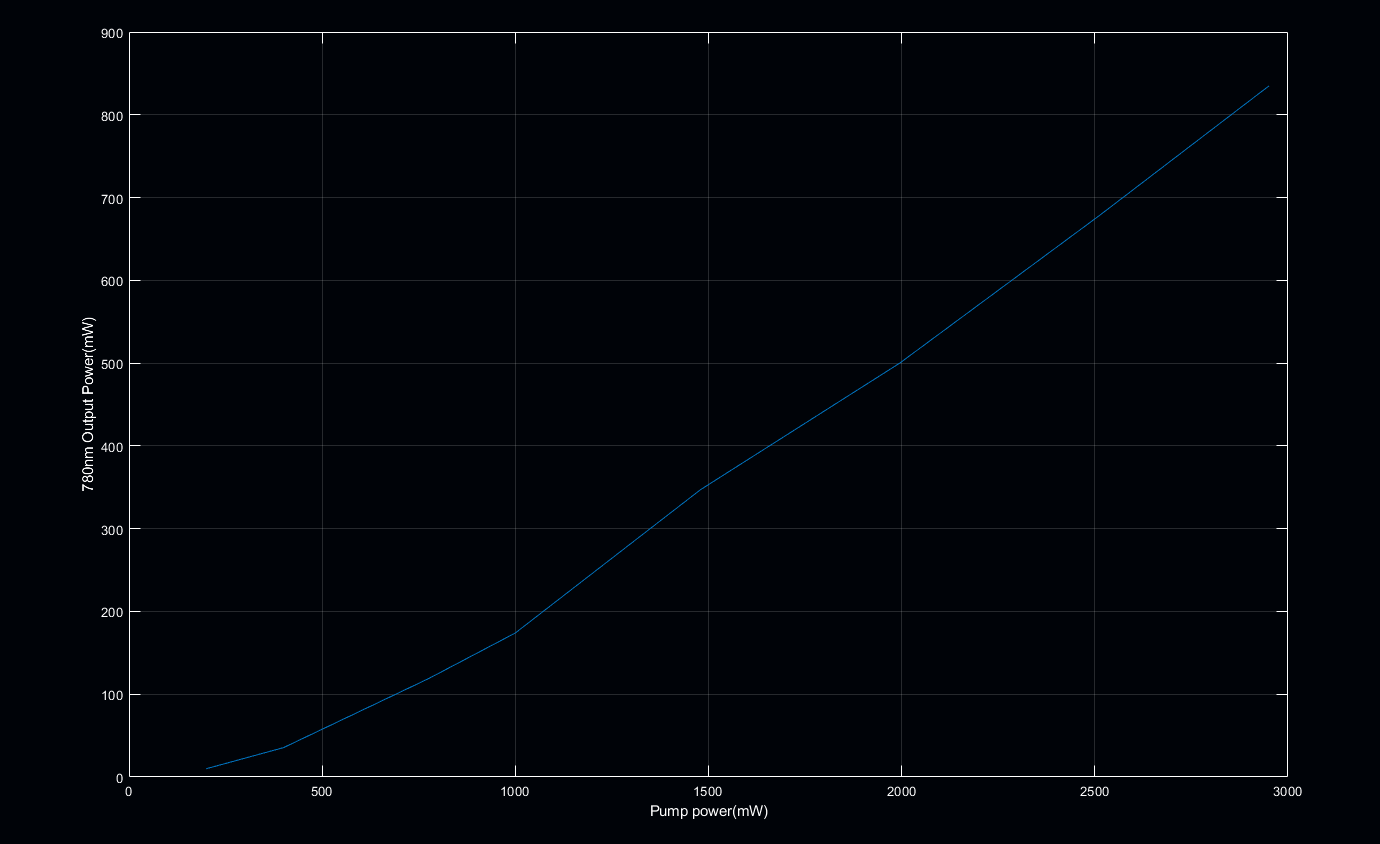

    PPLN Pump and Signal Power Conversion curve

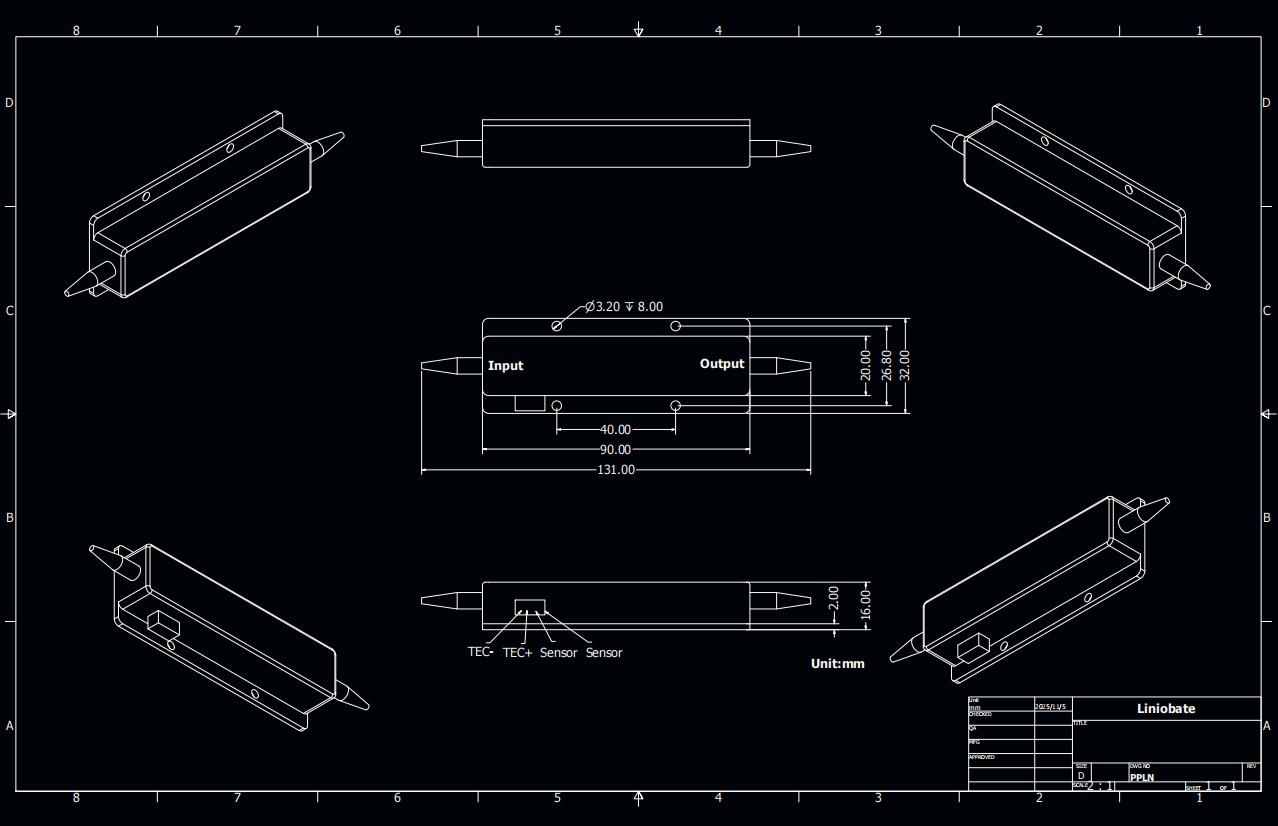

    Dimensions and Pin definitions（Unit in mm)


    Ordering info

    PN#SHG780   1560→780nm Fiber-Coupled PPLN Waveguide Device



    FC/APC Connector (Both ends), Input Fiber :PM 1550 fibers with Slow axis alignment,Output Fiber:PM780 fibers with Slow axis alignment，PER＞20dB,Max Handling Power:5W,Output Power:＞1000mW.




    Download

    1560→780nm Fiber-Coupled PPLN Waveguide Device.pdf
