O band 40GHz Thin Film Lithium Niobate Fiber Optical Intensity Modulator-Low Vp ( Bend Type)

Overview
Parameters
Features
● X-Cut Thin-Film LiNbO3 Waveguides
● Operating Wavelength at 1310±40nm
● Bandwidth in Excess of 65 GHz
● Low Drive Voltage
● Single-End Drive(Optional)
Product Specifications (Unless otherwise specified, all tests are conducted at 25°C)
Parameter | Symbol | Test Conditions | Min | Typ | Max | Unit |
Operating Bandwidth | S21 | Starting from 2 GHz | 40 | GHz | ||
Return Loss | S11 | -10 | dB | |||
Operating Wavelength | λ | 1310 | nm | |||
Insertion Loss | IL | 1310 nm CW, 0 dBm | 4 | 4.5 | 5 | dB |
Extinction Ratio | ER | 20 | dB | |||
Half-Wave Voltage | Vπ | 1310 nm CW, f = 50 kHz | 3 | 3.5 | V |
Maximum Absolute Ratings
Parameter Name | Symbol | Rated Value | Unit |
Input Optical Power | Ps,o | 23 | dBm |
Input Optical Return Loss | Ps,rf | 23 | dBm |
Thermoelectric Cooler Voltage | VH | ±8 | V |
Operating Temperature | TW | -40 ~ +85 | °C |
Storage Temperature | TS | -40 ~ +85 | °C |

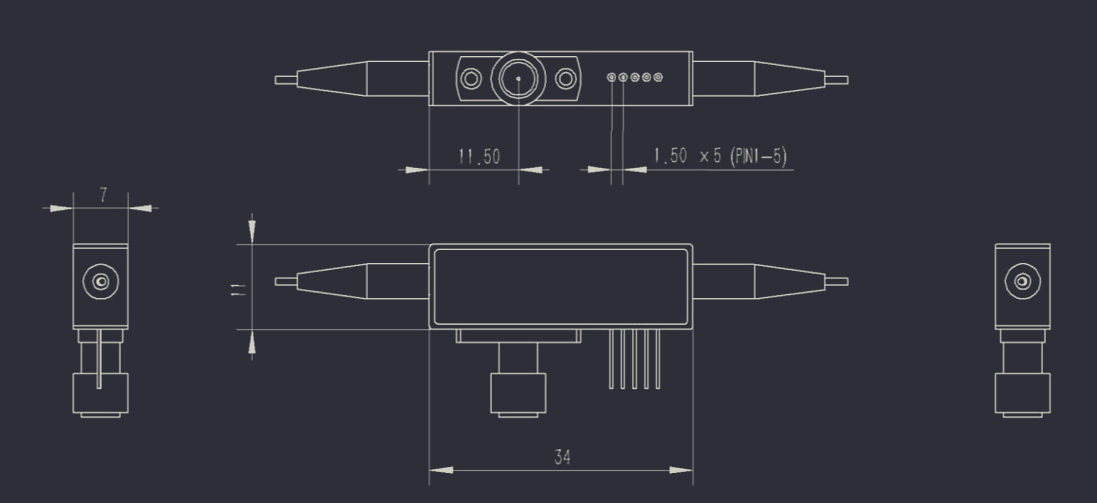

Dimensions (unit mm)

Pin definitions
Pin | Symbol | Note |
RF Port | RFIN | 1.85 mm connector |
Optical Fiber Input | OPIN | FC/APC, PMF |
Optical Fiber Output | OPOUT | FC/APC, SMF |
DC Bias Line 1 | PIN1 | TEC Positive |
DC Bias Line 2 | PIN2 | TEC Negative |
DC Bias Line 3 | PIN3 | Output MPD Positive |
DC Bias Line 4 | PIN4 | Output MPD Negative |
DC Bias Line 5 | PIN5 | / |
