Balanced InGaAs Photodiodes to 25 GHz

  • Response wavelngth 1100-1565nm, Bandwidth 25G, Material InGaAs, Detector response 0.7A/W@1550nm

    • Recommended

    Overview

    The BPD25 is "push-pull" InGaAs photodiodes with each photodiode capable of handling high optical power up to +14 dBm. High Common Mode Rejection Ratio (CMRR) and low Polarization Dependent Loss (PDL) make these devices ideal for both digital and analog applications. The broad wavelength response of these photodiodes allows for multiple wavelength usage.
  • Product features：Response wavelngth 1100-1565nm, Bandwidth 25G, Material InGaAs, Detector response 0.7A/W@1550nm
  • Part Number：BPD-25G-A
  • Application area：DPSK/DQPSK: Differential Phase/Polarization Shift Keying or Differential Quadrature Phase Shift Keying 、High Dynamic Range, Analog RF Links over Fiber 、Rapid Doppler-shift LIDAR measurements 、Coherent Lightwave Systems 、Brillouin Scattering - OTDR 、Test and Measurement

    • Parameters

    Features

    ● Lowest PDL (typical 0.05 dB)

    ● Normalized CMRR exceeds 30 dB

    ● Useable spectral wavelength range of 800-1650 nm

    ● Improves sensitivity by canceling DC portion of RIN and ASE noise

    ● High optical power handling InGaAs PIN photodiodes

    ● Small form-factor fiber-pigtailed package

    ● Improved reliability for high optical power handling

    ● One device for multiple wavelengths reduces operational and inventory cost

    ● OIP3 exceeding + 40dBm for highly linear option


    Product Specifications (Unless otherwise specified, all tests are conducted at 25°C)

    Parameter

    Symbol

    Test Condition

    Min

    Typ

    Max

    Unit

    Operating Temperature

    T0


    0


    75

    ℃

    Storage Temperature

    Ts


    -40


    85

    ℃

    Operating Wavelength

    λ



    1550


    nm

    Bias Voltage

    Vb


    3

    5


    V

    Photosensitive Diameter

    Ф



    20


    μm

    Saturation Optical Power

    Ps

    λ = 1550 nm, Vb = 5 V

    9

    10


    dBm

    Responsivity

    R

    λ = 1550 nm, Vb = 5 V


    0.7


    A/W

    Responsivity Imbalance

    Imb



    1.50%



    Dark Current

    Id

    Vb = 5 V


    5

    10

    nA

    3 dB Bandwidth

    BW

    Ps,o = 0 dBm, Vb = 5 V

    25

    26


    GHz

    Common Mode Rejection Ratio

    CMRR

    Ps,o = 0 dBm, Vb = 5 V

    18

    20


    dB



    Maximum Absolute Ratings

    Parameter

    Symbol

    Rating

    Unit

    Optical Power

    Ps

    13

    dBm

    Forward Voltage

    Vr

    10

    V

    Operating Temperature

    Top

    -40 ~ +70

    °C

    Storage Temperature

    Tstg

    -40 ~ +85

    °C

    Soldering Temperature

    Tp

    260 (10s)

    °C

    Minimum Fiber Bending Radius

    Rfiber

    20

    mm

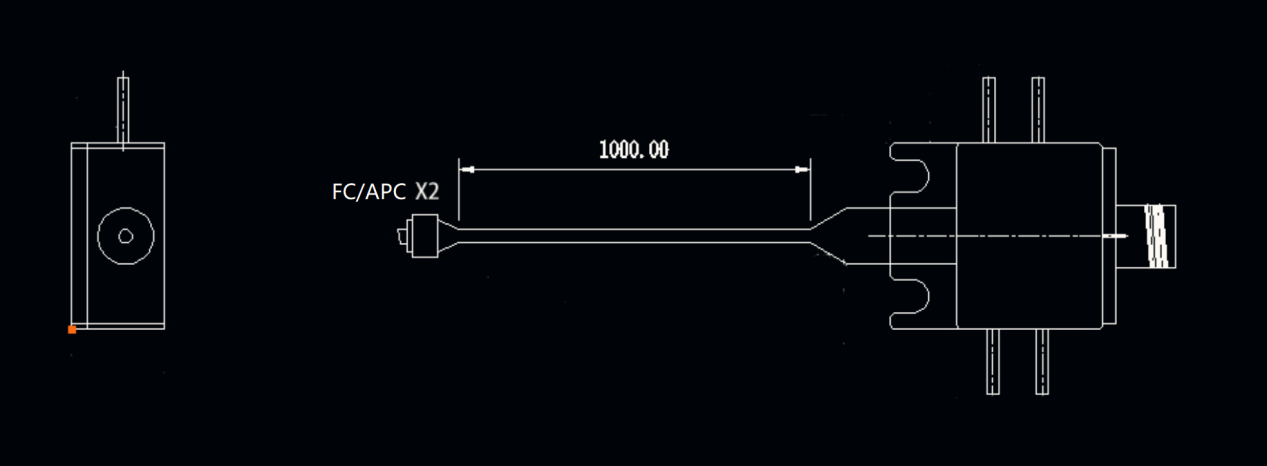

    Dimensions (unit mm)


    Custom sizes and pins are available upon request, with the minimum size being 16*16*8mm (with pigtails, pins, and mounting details ).

    Download

    Balanced InGaAs Photodiodes to 25 GHz.pdf
